APRS and Packet Radio



The ICOM IC-2720H does an excellent job of supporting APRS / Packet and voice simultaneously with its dual band capability.


Tom Webb, WA9AFM/5 Provides these tips on using your IC-2720 for APRS and Packet:


It is possible to run APRS / Packet  and voice with the 2720.

bullet

The 'left' panel needs to be selected as 'main' band,

bullet

You must select the 'right' side of the panel for packet (Initial Set Mode actions, see page 62 in manual);

bullet

this will force packet to the 'sub' band on the right.

bullet

voice operations will be on the 'main band'  on the  'left'.

bullet

Set the packet speed for 9600 baud (see page 69 in manual). This will accomplish three things;

bullet

The mike will be muted during packet transmissions and thus, you won't have to unplug it.

bullet

During voice operations, data transmission will be suppressed and voice will have priority;

bullet

Flashing 'S1' will appear in the lower right corner when transmitting on voice.

bullet

**NOTE:  you can still run 1200 baud packet -- the 9600 baud setting enables the 'dual mode' option.

bullet

I use the Byonics TinyTrakIII.  (but this should follow for other TNC's)

bullet

Using the mini-DIN 6-pin connector, the cable doesn't require data out

(* you will need to use Data out for  9600 baud or the AF out for 1200 baud -
there are two audio outputs -- choose the one for  your baud rate *)


 PIN   SIGNAL
  FRONT PANEL VIEW
1*   Data in (audio in) *see page 62
2    Ground
3   PTT
4   Data Out - 9600 Baud Only
5   AF Out   - 1200 Baud Only
6   PSQL (carrier detect)



bulletIf the TTIII is powered up before the 2720 the yellow CD light will come on steady.
bullet

When the 2720 is powered up, the CD light will go off and only come on when a signal is detected.


You will get de-sensing on voice from the APRS transmissions, but it's a fair tradeoff as you're using one radio and antenna.  I've been  using this configuration for several weeks with great success


*  See p. 62 for details on how to toggle data speed between 1200 (AFSK) and 9600 bps (G3RUH, GMSK).

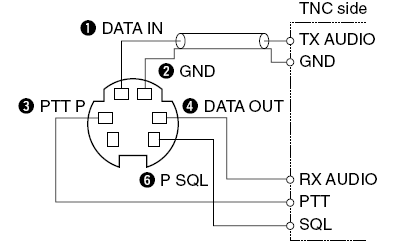

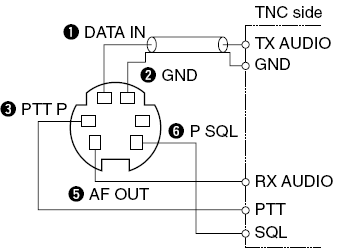

Connections for 9600 Baud Connections for 1200 Baud

Thanks to Tom, WA9AFM for these tips
